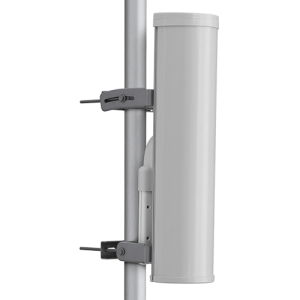

Cambium Networks has designed an antenna solution that enables network operators to increase the spectral efficiency and scale of their ePMP point to multi-point (PMP) distribution access networks. Wireless Service Providers deploying networks in 5GHz spectrum will find this sector antenna for 90° and 120° applications especially well-suited for high-density networks requiring frequency re-use and wide-band spectrum coverage. Product Features • Frequency Reuse: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35 dB front to back ratio including a wide aperture in the rear facing direction • Channel Flexibility: consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance • Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector • Designed for the Installer: Small compact design, integrated ePMP radio mount and GPS antenna integration • Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth

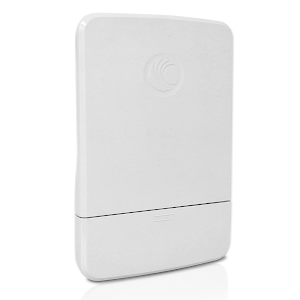

2X2 MIMO support with peak throughput of 600 Mbps 256QAM-5/6, 80 MHz support Supports a wide frequency range: 4910 to 5950 MHz Frequency re-use with GPS sync and interference mitigation Connectorized for use with sector antenna. Also compatible with RF Elements Twistport(tm) Adaptor for ePMP Cloud or on-premises network management with cnMaestro

SPECTRUM Channel Spacing Configurable on 5 MHz increments Frequency Range 4910 – 5980 MHz (exact frequencies as allowed by local regulations) Channel Width 20 | 40 | 80 MHz INTERFACE MAC (Media Access Control) Layer Cambium Proprietary Physical Layer 4X4 MUMIMO/OFDM Ethernet Interfaced 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port Powering Methods Supported 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter Protocols Used IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping Network Management HTTPs, SNMPv2c, SSH VLAN 802.1Q with 802.1p priority PERFORMANCE Subscribers per Sector Up to 120 ARQ Yes Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS 0 , -92 MCS 8 supported by Wi-Fi -68 Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0, -89 MCS9, -64 Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0, -86, MCS9 – 61 Modulation Levels (Adaptive) MCS0 (BPSK) to MCS 9 (256 QAM 5/6) GPS Synchronization Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna) Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support* DSO* Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel Fast DFS* Change to alternate radar free channel with background availability check

ePMP has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. ePMP 2000 is the next generation Access Point bringing interference tolerance to a whole new level with unique HypureTM technology which combines Intelligent Filtering and Smart Beamforming to deliver new levels of performance in the face of interference. The ePMP 2000 System consists of a high performance, GPS Synchronized Access Point Radio with Intelligent Filtering, a new compact high performance Sector Antenna and an optional Smart Antenna. Intelligent Filtering improves both receive and transmit performance. It protects the network from off-channel interferers with a filter that dynamically moves around the channel. On the transmit side, it protects the RF environment by reducing off-channel transmission noise. Smart Beamforming drastically reduces the effects of on-channel interference. The System learns the locations of each served Subscriber Module and forms a narrow beam towards the desired Subscriber Module while that radio is transmitting in the uplink. This reduces the gain on the uplink for on-channel interferers that are transmitting at an azimuth angle different than the Subscriber Module, delivering performance gains never before seen. KEY ADVANTAGES: • Eliminate Uplink Interference: Smart Beamforming delivers dramatic performance improvements when dealing with strong co-channel uplink interference, maximizing network performance. • Consistent Performance in High Interference: By mitigating significant sources of interference, packet loss and retransmissions are kept to a minimum, keeping your network applications working at their best. • Improvement in Uplink and Downlink Performance: By eliminating packet loss and retransmissions resulting from cochannel uplink interference, TCP retransmissions are greatly reduced. Other applications also show significant performance benefits.

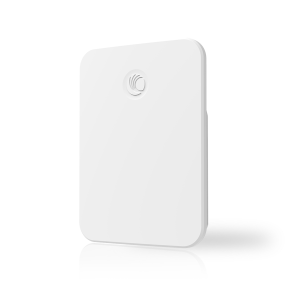

The cnPilot™ e500 is a rugged, dual-band outdoor Wi-Fi 5 access point with dual Gigabit Ethernet ports, PoE output, and IP67 weatherproof housing—ideal for high-density, interference-prone outdoor environments. Managed via cnMaestro™, it offers zero-touch provisioning, advanced RF controls, and multi-device connectivity.

Frequency Range 4.9 GHz to 5.97 GHz Gain 17 dBi 3 dB Beamwidth – Azimuth 70 degrees 3 dB Beamwidth – Elevation 6 degrees Electrical Downtilt -2 degrees Polarization 2X Horizontal, 2X Vertical

Product Specifications: • Environmental: IP55 • Connectors: 2 x RJ-45 1000BaseT • Power: 56V DC nominal • Protection Mode: Line to Line and Line to Ground • Operating Temperature: -40 to 140deg F (-40 to 60deg C) • Mounting: Pole or wall-mount
