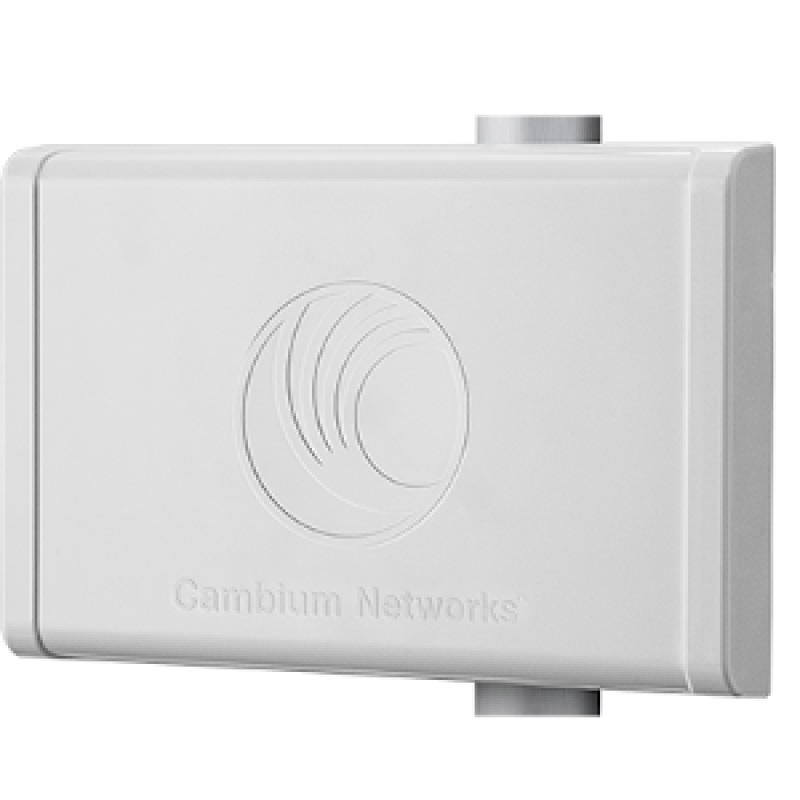

Cambium ePMP 2000 5Ghz Smart Beamforming Antenna-C050900D020A
| Weight | 4 kg |
|---|---|
| Dimensions | 33.3 × 21.3 × 4.6 cm |
| brands |
Model/Part # C050900D020A
Compatibility ePMP 2000 Access Point only
SPECTRUM
Frequency Range 5150 – 5970 MHz (exact frequencies as allowed by local regulations)
PHYSICAL
Connectors to Access Point 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
Mounting Hardware Included for mounting to ePMP 5 GHz Sector Antenna (C050900D021A)
Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm)
Up to +10 degree tilt
Physical Dimensions 13.1″ (L) x 8.4″ (W) x 1.8” (H) (33.3 cm x 21.3 cm x 4.6 cm)
Without Mounting Brackets
Weight (4 kg)
WithMounting Brackets
Environmental IP65
Radome Material UV Protected ABS
Operating Temperature -30o
C to +55oC (-22o
F to +131oF)
Power Consumption 2.5 W [1] (provided by ePMP 2000 Access Point)
Environmental Cover Included Yes
Wind Loading Operational at ≤ 145km/hr, Survival at ≤ 209km/hr
PRODUCT
Model # C050900D020A
SPECTRUM
Frequency Range 5150 – 5970 MHz (exact frequencies as allowed by local regulations)
