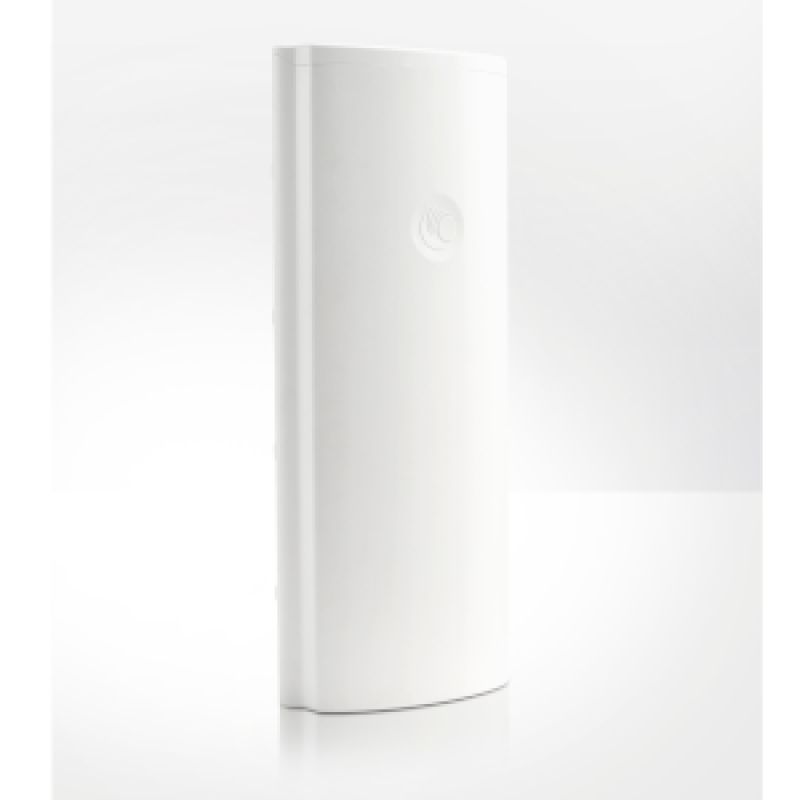

cambium Networks’ ePMP 3000 Sector Antenna consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance. Excellent null fill capabilities of the antenna allow for broad
geographical coverage within a sector even near the base of the tower and the edges of the sector. Small, compact design, integrated ePMP radio mount and GPS antenna integration. The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth

Product Features
• 17dBi Gain
• 4.9 to 5.97GHz Spectrum
• 30dBi Front to Back Ratio
• IP 65 Ruggedization

Product Specifications
• Model Number C050910D301A
• Frequency Range 4.9 GHz to 5.97 GHz
• Gain 17 dBi
• 3 dB Beamwidth – Azimuth 70 degrees
• 3 dB Beamwidth – Elevation 6 degrees
• Electrical Downtilt -2 degrees
• Polarization 2X Horizontal, 2X Vertical
• Model Number C050910D301A
• • Port-to-Port Isolation > 20 dB
• Front-to-Back Ratio 30 dB
• Maximum Input Power 5 W
• Input Impedance 50 ohms
• Mounting Connectors 4 x RP SMA
• Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt
• Hardware included to connect ePMP access point to back of antenna body
• Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)
• Weight Antenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg
• Environmental IP65
• Radome Material UV Protected ABS
• Operating Temp -400C to 600C (-400F to 1400F)
