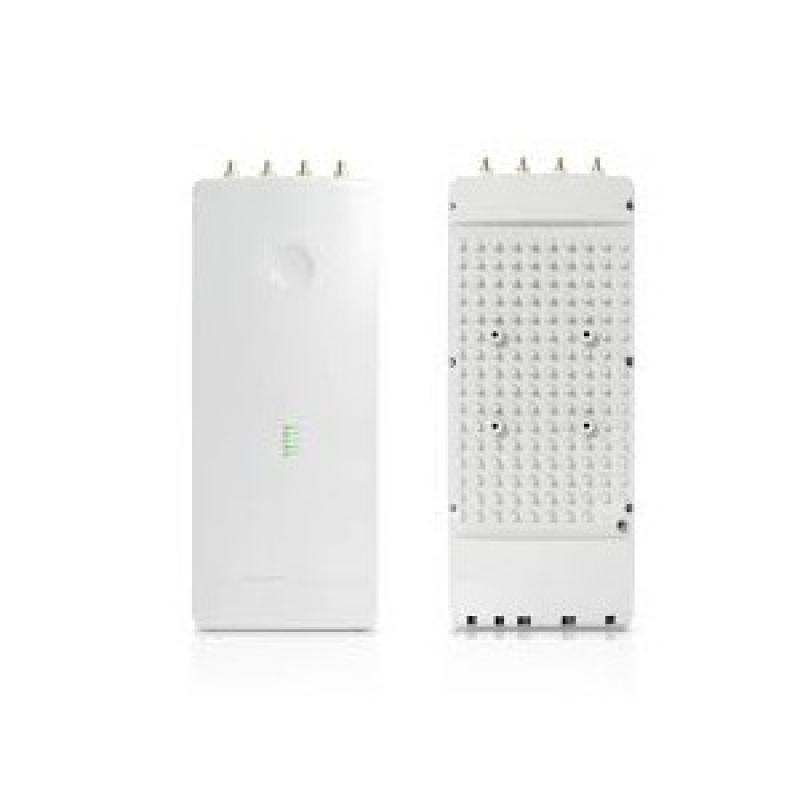

Cambium ePMP 3000 | 4X4 MU-MIMO access point-C050910A301A
₦1050600
SPECTRUM
Channel Spacing
Configurable on 5 MHz increments
Frequency Range
4910 – 5980 MHz (exact frequencies as allowed by local regulations)
Channel Width
20 | 40 | 80 MHz
INTERFACE
MAC (Media Access Control) Layer
Cambium Proprietary
Physical Layer
4X4 MUMIMO/OFDM
Ethernet Interfaced
100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port
Powering Methods Supported
56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter
Protocols Used
IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management
HTTPs, SNMPv2c, SSH
VLAN
802.1Q with 802.1p priority
PERFORMANCE
Subscribers per Sector
Up to 120
ARQ
Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel
MCS 0 , -92 MCS 8 supported by Wi-Fi -68
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel
MCS0, -89 MCS9, -64
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel
MCS0, -86, MCS9 – 61
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS 9 (256 QAM 5/6)
GPS Synchronization
Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support*
DSO*
Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel
Fast DFS*
Change to alternate radar free channel with background availability check
KEY ADVANTAGES:
- Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
- Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
- Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 2000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
- Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.
KEY SPECIFICATIONS:
- MU-MIMO support with peak throughput of 1.2 Gbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 – 5970 MHz
- 802.3at compliant 100/1000BaseT interface
- Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering
