Cambium 56 VDC Gigabit Ethernet Surge Suppressor
₦80100

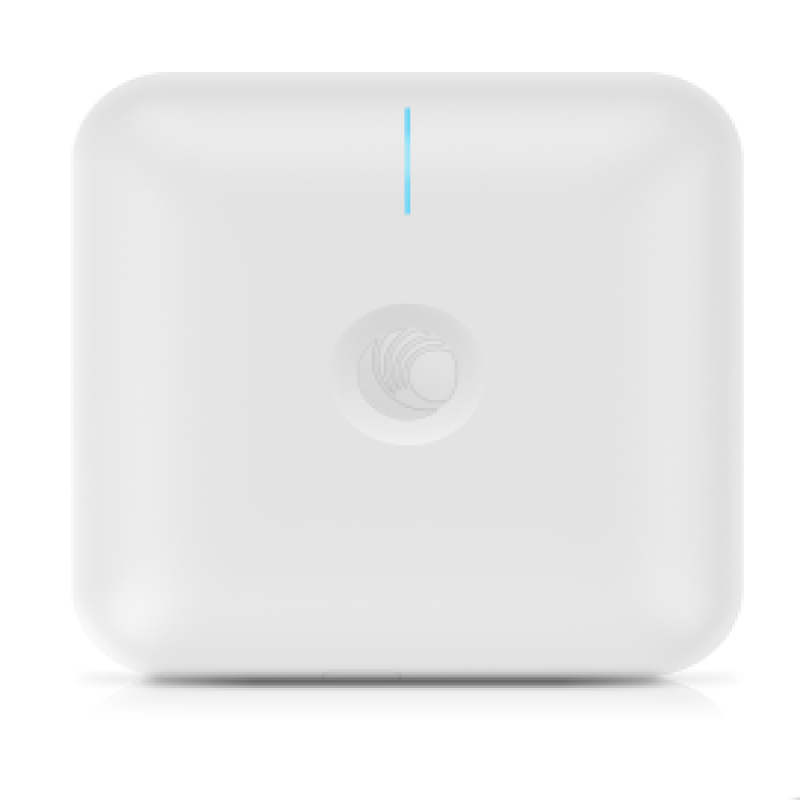

Cambium CNPILOT E410 RW | Access point | AC MIMO, 2,4GHz, 5GHz, 1x RJ45 1000Mb/s, with PoE Injector
₦325200
The plenum-rated cnPilot™ e410 with 2×2 MU-MIMO packs a max transmit power of 25 dBm and channels up to 80MHz wide on 5 GHz – offering more flexibility than ever for both coverage and capacity.
CNMAESTRO MANAGEMENT
LICENSE-FREE HIGH PERFORMANCE
cnPilot 802.11ac wave 2 solutions come with a free controller and no AP management license fees. There are no hidden charges.
SECURITY
Supports WPA2 Enterprise and WPA2 PSK
SSID
16 SSIDs supporting 256 concurrent users
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Maximum wireless transmission speed | 1300 Mb/s |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
| Operating frequency | Dual Band (2.4GHz, 5GHz) |
| Wireless network standards | IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
| Antenna gain | Under 10dbi |
| Antenna type | Integrated |
| Application | Indoor |
| Device type | Access point |
| Management | CLI – Command Line Interface, Dedicated application, By web browser, |
| MIMO Type | MU-MIMO 2×2 |
| Type of case | Plastic |
| Type of device power supply | PoE 802.3af/at |
| WiFi encryption | WPA/WPA2 |
| Access point specification | |
| Beam shaping | Supported |
| Simultaneous customers | 256 |
| MIMO, we’re streaking | 2×2:2 MU-MIMO |
| Channel width | 20 MHz, 40 MHz, 80 MHz |
| Standards | fuIEEE 802.11a/b/g/n/ac Wave2 IEEE 802.11d/e/h/i/k/r/u/v/w Modulation: BPSK, QPSK, CCK, 16/64/256-QAM Radio modes: DSSS, OFDM |
| Transmission power range | 2.4 GHz: 24dBm, 5 GHz: 25 dBm (total conduction) |
| Antenna gain | 2.4 GHz: 5.25 dBi, 5GHz: 5.5 dBi |
| Max. transmission speed | 2.4 GHz: 400 Mbps, 5 GHz: 867 Mbps |
| Antenna | Two-polar, omnidirectional, integrated |
| SSID | 16 SSID per 2 radio units |
| Radio functions | Maximum Ratio Combining (MRC) Cyclic Delay/Shift Diversity (CDD/CSD) support Space-Time Blocking Coding (STBC) Low-Density Parity Check (LDPC) |
| Ethernet ports | One with Auto MDIX Gigabit Ethernet Auto Detection (10/100/1000 Mbps) RJ45 port |
| Wi-Fi Alliance | Wi-Fi certified a/b/g/n/ac WPA2-Enterprise, Personal WMM, Passpoint |
| Power supply | 802.3af PoE power supply or PoE-powered switch |
| Working humidity | 10% to 95%, non-condensing |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | 384 g (0,86 lb) |
| Frequency bands | 2,400 to 2,2484 GHz 5,150 – 5,250 GHz 5.725 to 5.850 GHz 5,250 – 5,350 GHz 5,470 – 5,725 GHz |
| Dimensions | 17.0 x 17.0 x 4.1 cm (6.7 x 6.7 x 1.61″) |
| Power consumption | 13 W (max.) |
| Safe installation | Kensington Key Slot |
| Reset button | Available at |
| LED | Three-colour LEDs controlled from the software item |
| MTBF | 1.507.537 h at 50°C, 4.431.480 h at 25°C |
| Certificates | FCC, CE, IC, UL EN60601-1-2 (Medical EMC) Compliant with UL2043 WEEE/RoHS Plenum |
| Wi-Fi features | |
| Mounting options | Wall and ceiling – mounting bracket, desktop option T-bar support: 14 mm, 24 mm, 38 mm |
| Management modes | cnMaestro cloud management Self-contained local controller cnMaestro VM Autopilot (access point as a controller for networks up to 32 access points) Standalone via Access Point GUI (http/https), CLI (telnet/ssh) |
| Radio management | AutoRF automatic channel and power management |
| AAA support | Authentication, access control, dynamic RADIUS authorisation (CoA, DM) Server emergency switchover, load balancing |
| Customer isolation | At the access point, throughout the network |
| QoS | 802.11e/WMM QoS, DSCP/ToS mapping |
| Grid | WDS Mesh unit and multistage |
| Ethernet services (L2) | 802.1p/802.q, RADIUS with assigned VLAN, VLAN to SSID, VLAN pooling, LLDP, IGMP Snooping (v1/v2/v3) |
| Network services | NAT, DHCP server |
| MAC Authentication | Filtering list at the access point MAC filtering list in the controller RADIUS MAC Authentication Forwarding MAC authentication to the Captive Portal |
| Firewall | Layer 2 (L2), layer 3 (L3) and DNS ACL DoS Protection |
| 3G/4G/LTE Offload | Passpoint (Hotspot 2.0) |
| DHCP | Supported |
| External NMS monitoring | SNMP v1, v2c, v3 |
| Customer API | Customer presence/location API DNS, NAT and TCP Connecting Logging |
| Time synchronization | Automatic (from controller), NTP |
| Diagnostic tools | Packet Capture, Spectrum Analyzer, DNS check Ping, Traceroute, Syslog, Speedtes |
| Traffic tunnelling | L2TP, L2oGRE, PPPoE |
| Transmission speed (Mbps) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 802.11n (2.4 GHz): 6.5 to 400 802.11ac (5 GHz): 6.5 to 866.7 |
| cnMaestro Controller and Network Manager | |
| Flexible installation | Cloud management |
| Network management | Centralized configuration, statistics, events, firmware |
| Hierarchical views | Network topology mapped to objects and floors |
| Floor plans | Transmission of individual floor plans and mapping of access points |
| Integrated guest portal | OTP SMS authentication payment gateways support voucher-based authentication with social networking login |
