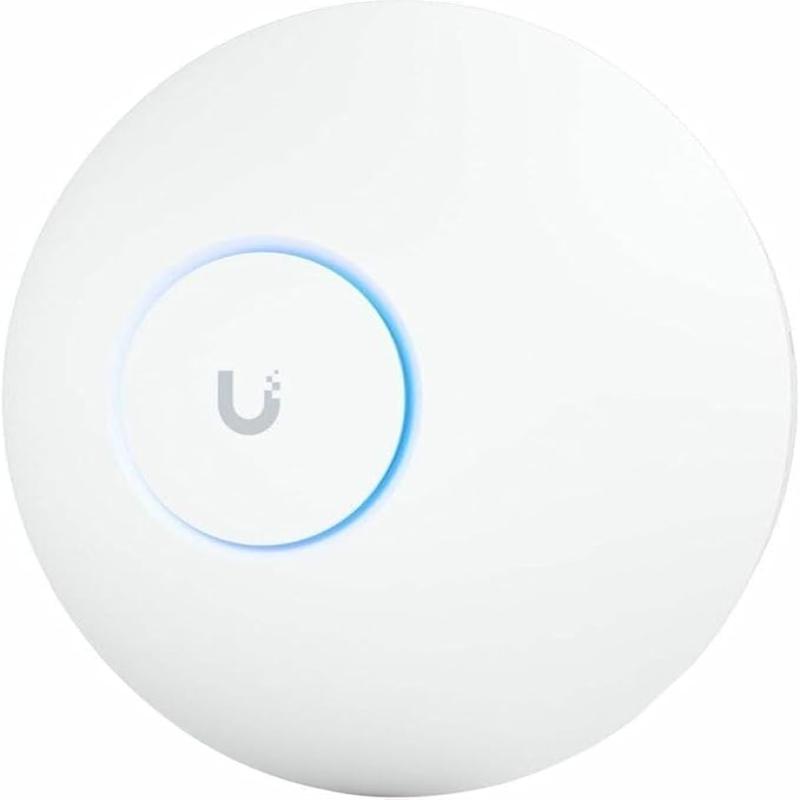

The Ubiquiti UniFi U7 Lite is a compact, ceiling or wall-mounted WiFi 7 access point engineered to deliver lightning-fast speeds, low latency, and superior efficiency in high-density environments. Designed for businesses, smart homes, and public venues, this access point combines 4 spatial streams, 2.5 GbE uplink, and PoE-powered simplicity with support for over 200 connected devices across 115 m² (1,250 ft²).

Built with cutting-edge technologies like WiFi 7 (802.11be), OFDMA, MU-MIMO, and advanced roaming capabilities, the U7 Lite ensures seamless connectivity across all modern client devices—making it a future-ready investment for scalable wireless deployments.

🔑 Key Features:

• WiFi 7 (802.11be) for ultra-high-speed wireless networking

• Dual-band performance on 5 GHz and 2.4 GHz

• 4 Spatial Streams with advanced MU-MIMO for efficient traffic handling

• 115 m² (1,250 ft²) coverage area

• Supports 200+ Concurrent Clients

• 2.5 Gigabit Ethernet uplink for high-speed backhaul

• PoE Powered (42.5–57V DC) for simplified installation

• UniFi Controller Integration for easy deployment and centralized management

• Advanced wireless features: Fast Roaming, Band Steering, BSS Transition, WiFi Scheduling, Client Isolation, and more

⚙️ Technical Specifications

Mechanical:

• Dimensions: Ø171.5 x 33 mm (Ø6.8 x 1.3″)

• Weight: 313 g (11 oz)

• Enclosure Material: UV-stabilized polycarbonate

• Mounting Plate: Included; ceiling or wall installation

• Mount Material: UV-stabilized polycarbonate + galvanized steel (SGCC)

• LED Indicators: System (White/Blue)

Hardware:

• Networking Interface: 1x 2.5 GbE RJ45 Port

• Power Method: 802.3at PoE

• Supported Voltage: 42.5–57V DC

• Max Power Consumption: 13W

• Max TX Power:

  • 2.4 GHz: 23 dBm

  • 5 GHz: 24 dBm

• Antenna Gain:

  • 2.4 GHz: 4 dBi

  • 5 GHz: 5 dBi

• MIMO Configuration:

  • 2.4 GHz: 2×2

  • 5 GHz: 2×2

• Max BSSIDs: 8 per radio

• Channel Bandwidth Support:

  • HT/VHT/HE: 20/40/80/160 MHz

  • EHT (WiFi 7): 20/40/80/160/240 MHz

• Operating Temperature: -30°C to 40°C (-22°F to 104°F)

• Operating Humidity: 5% to 95% non-condensing

• Certifications: CE, FCC, IC

Performance:

• Max Data Rates:

  • 5 GHz (WiFi 7): Up to 4.3 Gbps (BW240)

  • 2.4 GHz: Up to 688 Mbps

• Supported WiFi Standards:

  • 802.11be (WiFi 7), 802.11ax (WiFi 6), 802.11ac (WiFi 5), 802.11n

• Supported Data Rates:

  • WiFi 7: 7.3 Mbps – 4.3 Gbps (MCS0–MCS13)

  • WiFi 6: up to 2.4 Gbps

  • WiFi 5: up to 1.7 Gbps

  • WiFi 4: up to 300 Mbps

Advanced Wireless Features:

• Wireless Meshing

• Band Steering

• Fast Roaming (802.11r)

• BSS Transition Management (802.11v)

• Radio Resource Management (802.11k)

• Client Isolation

• WiFi Scheduling

• Private Pre-Shared Key (PPSK)

• Dynamic VLAN Assignment (RADIUS)

• RADIUS over TLS (RadSec)

• Guest Network Isolation

• Captive Portal with custom branding, voucher/payment login, and external portal support

Software & Compatibility:

• UniFi Network Controller: Version 9.0.114 and later

• UniFi Mobile App:

  • iOS version 10.20.2+

  • Android version 10.21.7+

✅ Ideal For:

• Small to medium businesses

• High-density smart homes

• Retail and hospitality spaces

• Classrooms and collaborative spaces

• Future-proofing WiFi deployments with WiFi 7

•
