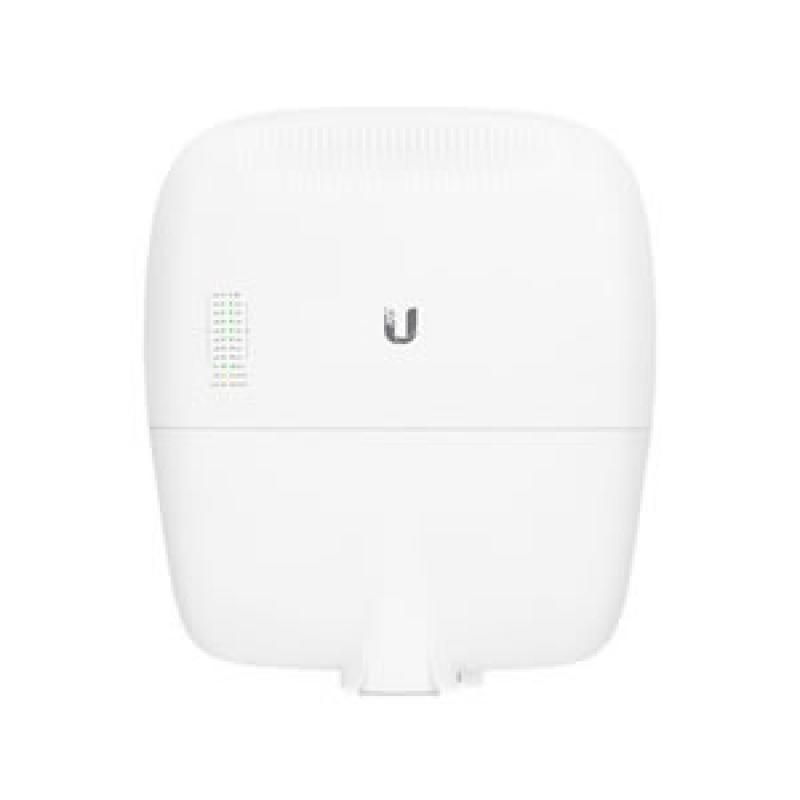

Ubiquiti
Networks introduces the EdgePoint, part of the EdgeMAX platform. The
first application-specific designed WISP control point, the EdgePoint
combines the advanced routing capabilities of EdgeMAX with fiber
backhaul and versatile powering capabilities. The EP-R8 is a layer-3
router with powerful routing features such as load balancing and
fail-over to provide redundancy and increase the performance for
outdoor wireless links.

Product
Features
•
All-in-One Design: A single, compact controller eliminates clutter,
expensive cabinets, and excessive maintenance.
•
Robust Construction: The ruggedized case withstands outdoor conditions
including wind and snow. Included cable sleeve protects cables and
openings.
•
Routing Features: Including VLAN interfaces, static router, DHCP, QoS,
NAT rules, and all you need for a robust set-up.

Product
Specifications
•
Dimensions: 326.6 x 382.7 x 88.8 mm (12.86 X 15.07 X 3.50″)
•
Dimensions (w/ Wall Mount): 326.6 x 387.2 x 105.5 mm (12.86 x 15.07 x
4.15″)
•
Weight: 3.4 kg (7.50 lbs)
•
Weight (w/ Wall Mount): 3.8kg (8.38 lbs)
•
Enclosure Characteristics: Diecast Aluminum Alloy and Polycarbonate
with UV Resistance
•
Max. Power Consumption: 40W (Excludes PoE Output)
•
Power Input: (1) DC Terminal Block or (2) RJ45 (PoE In and eth0)
•
Power Supply: Min. 54V / 0.8A (Excludes PoE Output Power)
•
VDC Input: 54VDC, 6A
•
Power Monitoring: (1) DC Terminal Block, Input Power ; (2) RJ45, PoE In
and eth0, Input Power
•
Supported Voltage Range: 56 to 42VDC
•
Serial Console Port: (1) RJ45 Serial Port
•
PoE In Port: (1) RJ45 Port
•
Data Ports: (6) 10/100/1000 RJ45 Ports ; (2) 10/100/1000 RJ45/SFP
Combination ports
•
Processor: Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for
Packet Processing
•
System Memory: 2 GB DDR3-1600 RAM
•
Code Storage: 4 GB
•
Certifications: CE, FCC, IC
•
Operating Temperature: -40 to 65°C (-40 to 149°F)
•
Operating Humidity: 10 to 90% Noncondensing

Package
Includes:
•
(1) EdgePoint Router
•
(1) Wall-Mount Bracket
•
(2) Metal Straps
•
(1) Cable Sleeve
•
(1) Gigabit PoE (54V, 1.5A) with Mounting Bracket
•
(1) Power Cord
•
(1) Quick Start Guide
