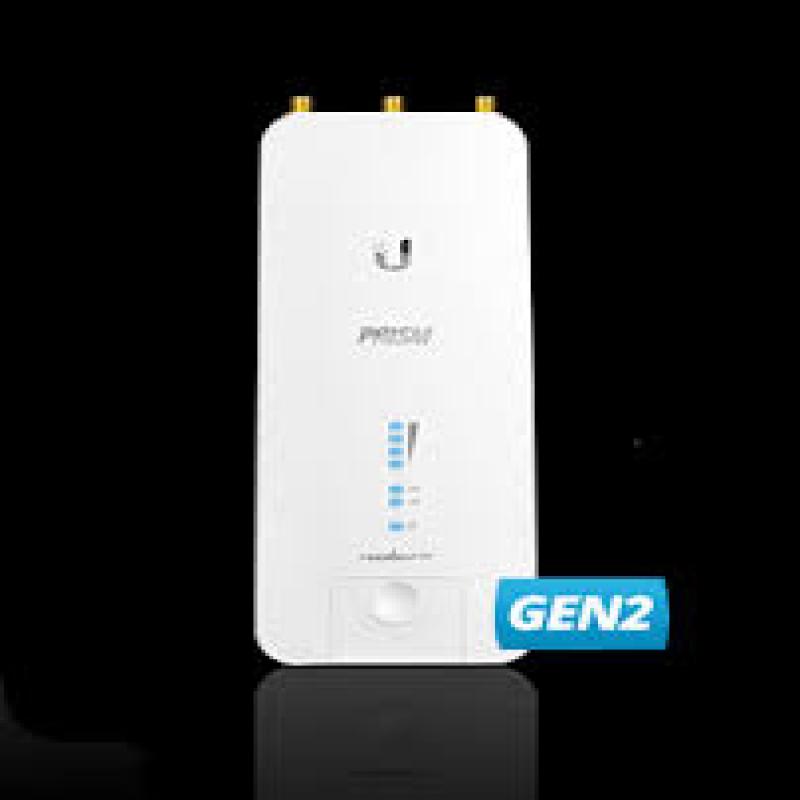

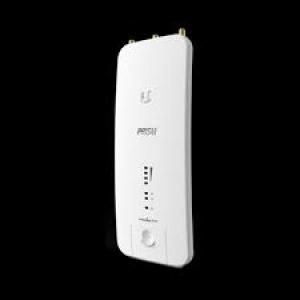

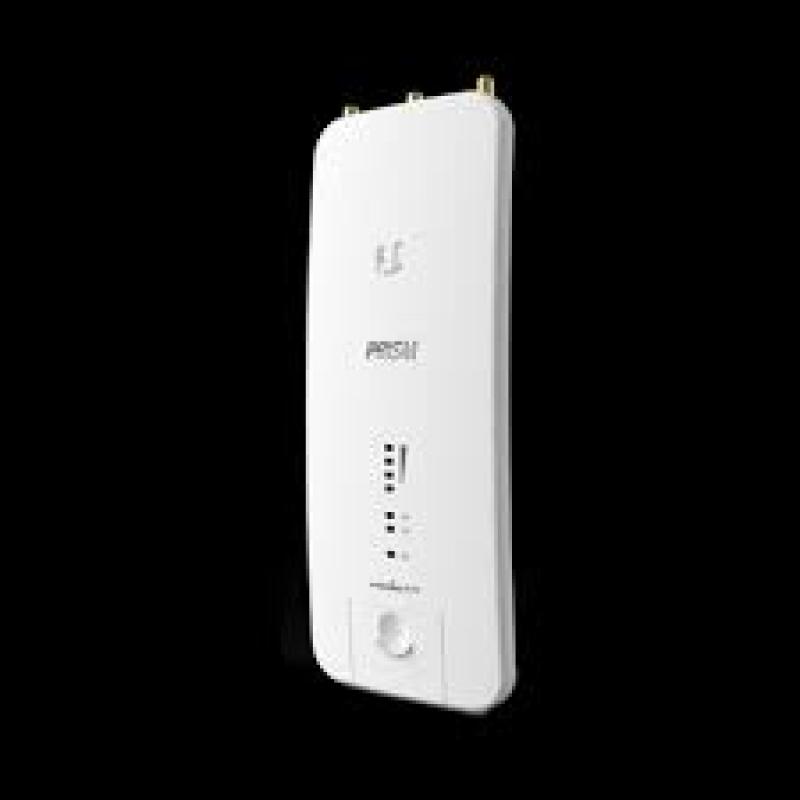

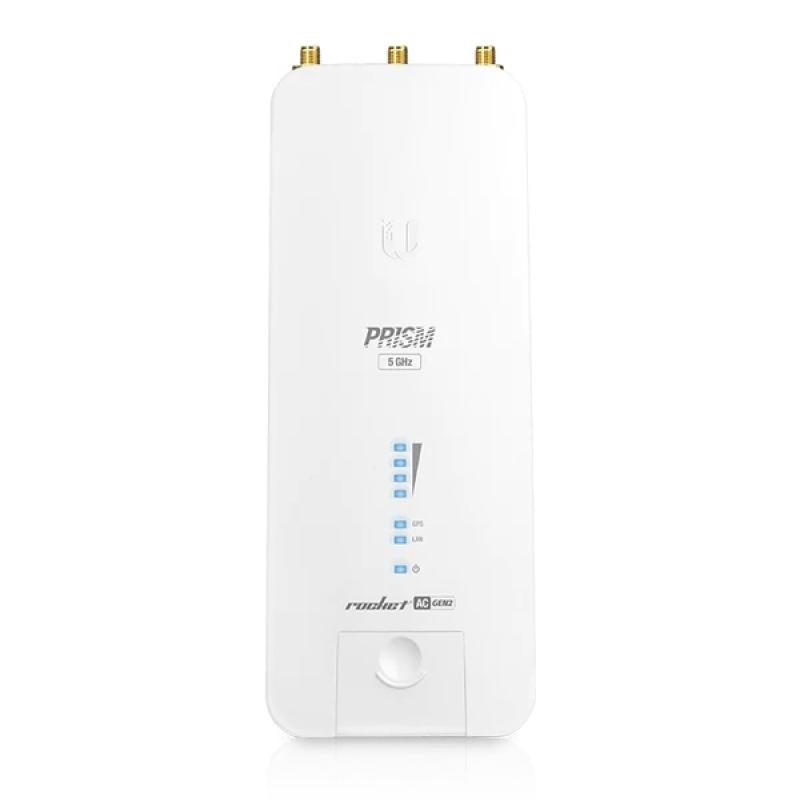

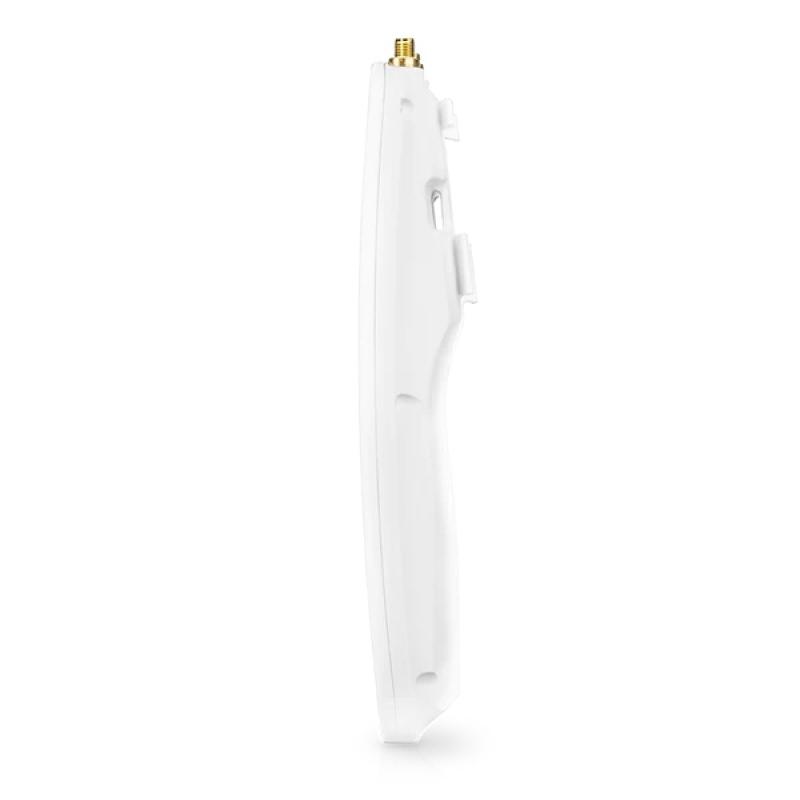

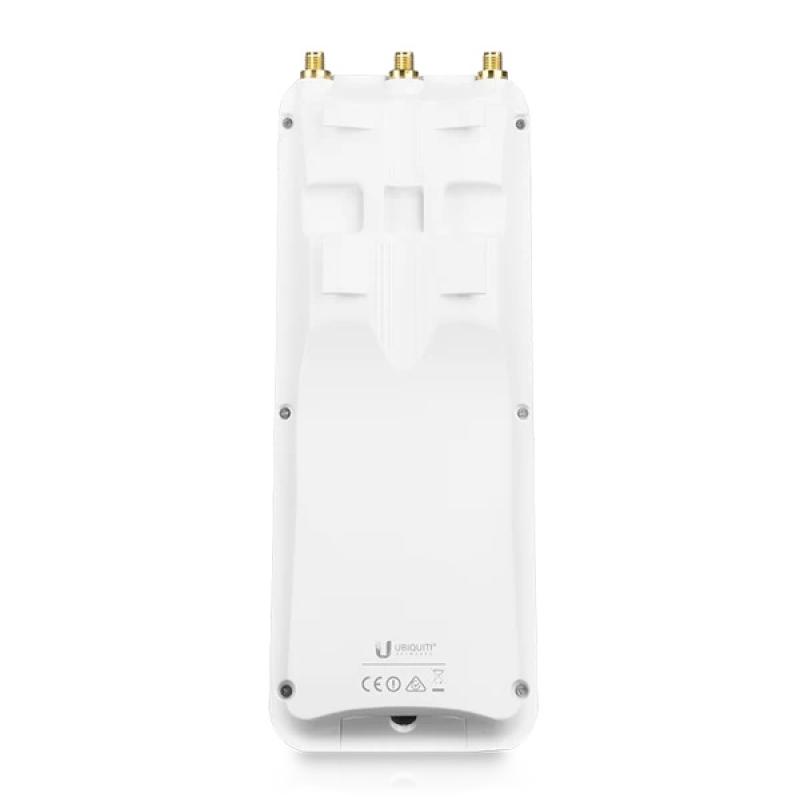

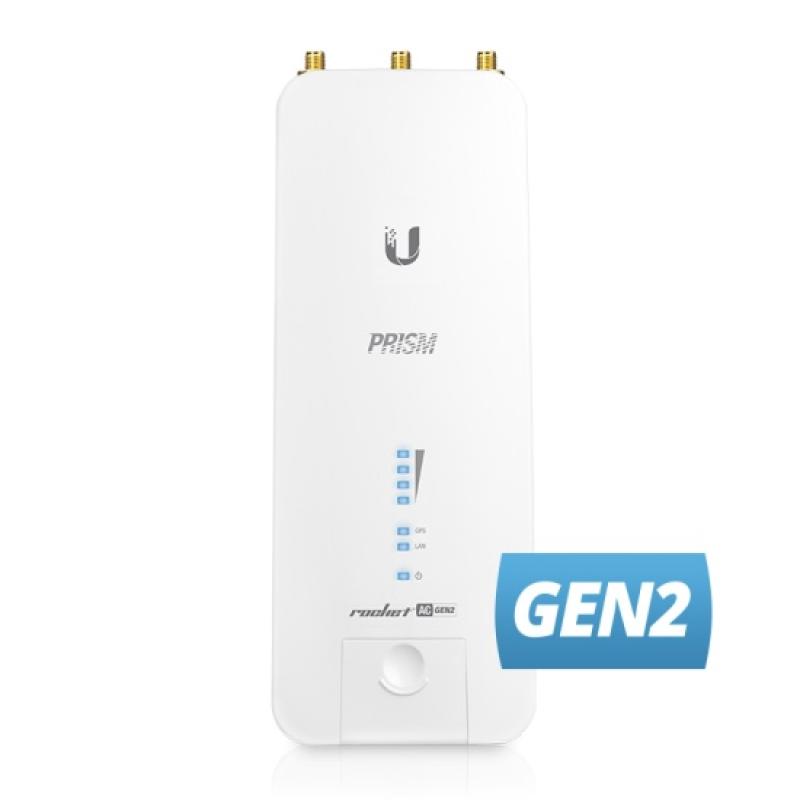

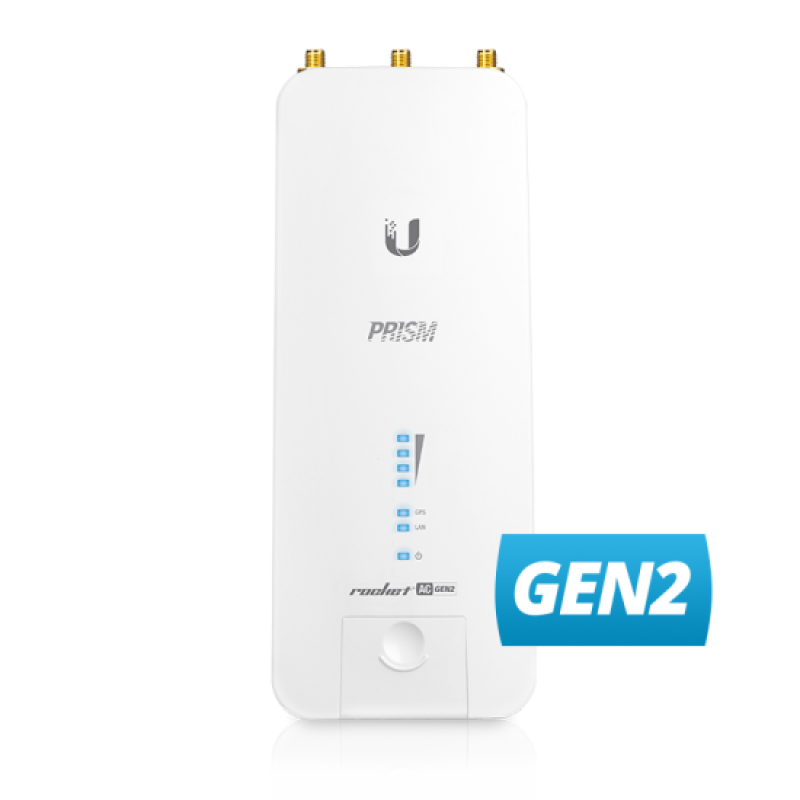

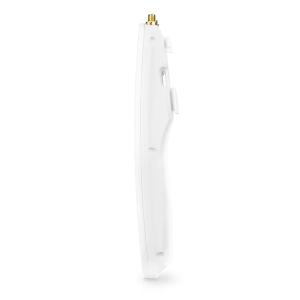

Ubiquiti airMAX Rocket 5AC Prism Point-to-Point Wireless Bridge/Base Station (R5AC-PRISM)

₦385000
The Ubiquiti Rocket Prism 5AC (R5AC-PRISM) is a point-to-point bridge / base station that covers the full 5 GHz radio band. The Rocket Prism 5AC incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Categories: Ubiquiti / Access point Brand: Ubiquiti SKU: R5AC-prism Gen2
Share :

Ubiquiti airMAX Rocket 5AC Prism Point-to-Point Wireless Bridge/Base Station (R5AC-PRISM)

The Ubiquiti Rocket Prism 5AC (R5AC-PRISM) is a point-to-point bridge / base station that covers the full 5 GHz radio band. The Rocket Prism 5AC incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.

Ubiquiti Rocket Prism 5AC (R5AC-PRISM) Key Features

  • Worldwide, Full-Band 5GHz
  • Up to 500Mbps Throughput
  • airPrism Active RF Filtering Technology
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Revolutionary Filtering Tech
Designed for High Performance
The Rocket Prism 5AC  (R5AC-PRISM) features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView real-time spectrum analyser to deliver maximum spectral efficiency/throughput.
High Performance
Full-Band 5 and 2.4 GHz Coverage
The Rocket Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
Full band coverage
Management Wi-Fi Radio

The R5AC-PRISM integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Management
Improved Surge Protection

The Rocket Prism 5AC features enhanced protection against ESD events.
Surge Protection
GPS Synchronisation
The Rocket Prism 5AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
GPS Sync

Ubiquiti Rocket Prism 5AC (R5AC-PRISM) - Technical Specifications

Physical / Electrical / Environmental Information

  • Dimensions
    88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
  • Weight
    400 g (14.11 oz)
  • Enclosure Characteristics
    Die Cast Aluminum with White Powder Coating
  • Processor
    Atheros MIPS 74Kc, 720 MHz
  • Memory
    128 MB DDR2 SDRAM, 16 MB NOR FLASH
  • Networking Interface
    (1) 10/100/1000 Mbps
  • RF Connections
    (2) RP SMA (Waterproof ), (1) GPS (Waterproof )

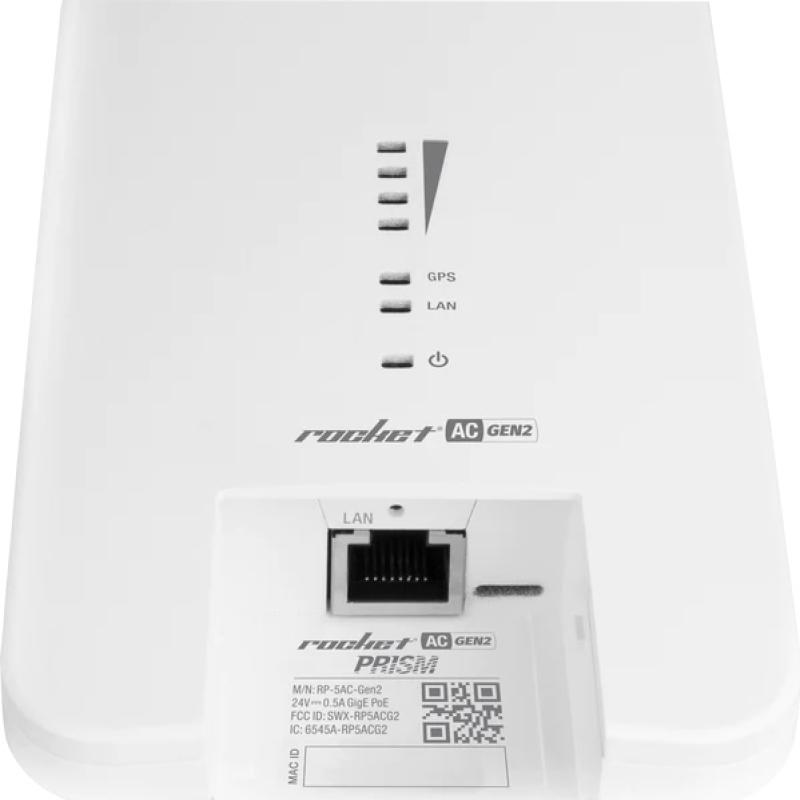

  • LEDs
    Power, LAN, GPS, (4) Signal Strength
  • Max. Power Consumption
    8.5W
  • Power Supply
    24V, 0.5A Gigabit PoE Adapter
  • Power Method
    Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Supported Voltage Range
    18 26VDC
  • ESD/EMP Protection
    ± 24KV Air / Contact
  • Operating Temperature
    -40 to 80° C (-40 to 176° F)
  • Operating Humidity
    5 to 95% Noncondensing
  • Shock and Vibration
    ETSI300 019 1.4

Software Information

  • Modes
    Access Point, Station
  • Services
    Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
  • Utilities
    Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
  • Distance Adjustment
    Dynamic Ack and Ackless Mode
  • Power Adjustment
    Software Adjustable UI or CLI
  • Security
    WPA2 AES Only
  • QoS
    Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
  • Statistical Reporting
    Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
  • Channel Sizes
    PtP Mode
    PtMP Mode
    10/20/30/40/50/60/80 MHz
    10/20/30/40 MHz
  • Other
    Remote Reset Support, Software Enabled/Disabled,
    VLAN Support, 256QAM, GPS, TX Filter
  • Ubiquiti Specific Features
    30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support,
    Discovery Protocol, Frequency Band Offset, Ackless Mode

Compliance

  • Wireless Approvals
    FCC, IC, CE
  • RoHS Compliance
    Yes
