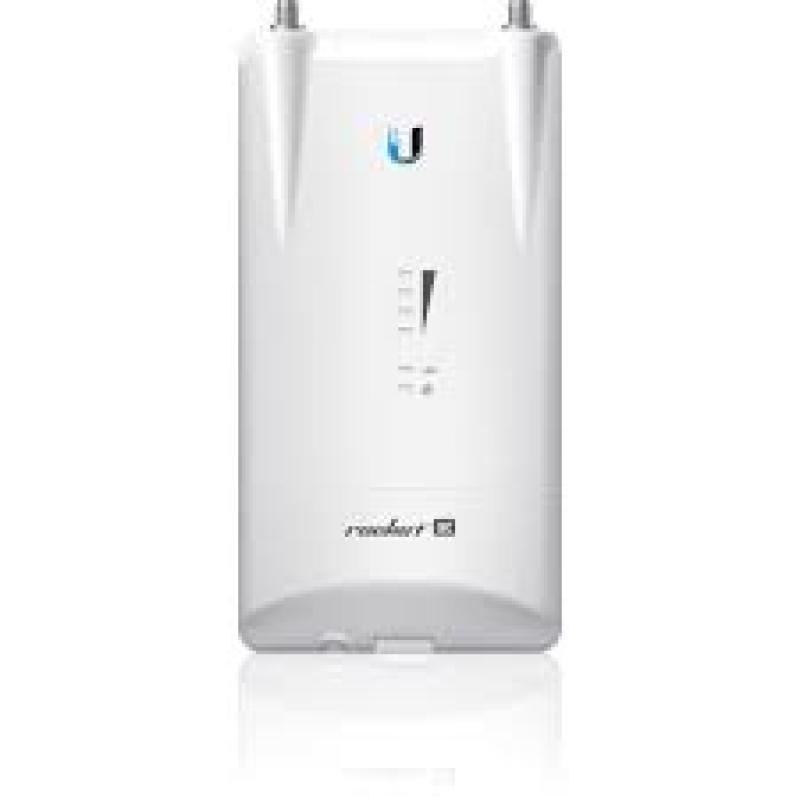

Ubiquiti airMAX Rocket 5AC Lite Wireless Bridge/Base Station (R5AC-LITE)

₦225000
The Ubiquiti Rocket 5 ac Lite (R5AC-LITE) is a powerful ac radio designed for high performance and easy installation. Deploy the R5AC-LITE anywhere in the world, as it is highly flexible when it comes to configuring channel bandwidths (subject to local country regulations).
Categories: Ubiquiti / Access point Brand: Ubiquiti SKU: R5AC-Lite
Share :

Ubiquiti Rocket 5ac Lite airMAX, Point to Point Wireless Bridge/Base Station (R5AC-LITE)

The Ubiquiti Rocket 5 ac Lite (R5AC-LITE) is a powerful ac radio designed for high performance and easy installation. Deploy the R5AC-LITE anywhere in the world, as it is highly flexible when it comes to configuring channel bandwidths (subject to local country regulations).

Ubiquiti Rocket 5 ac Lite Key Features

  • Frequency - Full-Band 5 GHz
  • Throughput - 450+ Mbps
  • Output Power - 27 dBm
  • airMAX ac Technology
  • Point-to-Point and Point-to-MultiPoint Functionality
  • Ports - (1) 10/100/1000 Ethernet
  • Plug and Play Integration with airMAX Antennas

PtP Backhaul

Pair the R5AC-LITE radio with a RocketDish Antenna to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.

PtMP links
Pair the R5AC-LITE radio with an airMAX Sector Antenna to create Point-to-MultiPoint (PtMP) links.

Intelligent airMAX ac TDMA Technology
Ubiquiti’s Time Division Multiple Access (TDMA) airMAX ac protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximises airtime efficiency, so airMAX ac technology provides leading performance in latency, noiseimmunity, scalability, and throughput.

airMAX acTDMA Technology illustration

Intelligent QoS
Priority assigned to voice/video for seamless streaming.

Scalability
High capacity and scalability.


airMAX ac Network Scalability

Long Distance
Capable of high‑speed, carrier-class link



Ubiquiti Rocket 5 ac Lite - Technical Specifications

General

  • Dimensions: 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”)
  • Weight: 250 g (8.81 oz)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Max. Power Consumption: 8.5W
  • Operating Frequency:
    - Worldwide: 5150 - 5875 MHz
    - USA: U-NII-1: 5150 - 5250 MHz*
    - USA: U-NII-2A: 5250 - 5350 MHz*
    - USA: U-NII-2C: 5470 - 5725 MHz*
    - USA: U-NII-3: 5725 - 5850 MHz*
  • Processor: Atheros MIPS 74Kc, 720 MHz
  • Memory: 128 MB DDR2 SDRAM, 16 MB NOR FLASH
  • Networking Interface: (1) 10/100/1000 Mbps
  • RF Connections: (2) RP-SMA (Waterproof )
  • LEDs: Power, LAN, (4) Signal Strength
  • Channel Sizes:
    - PtP Mode: 10/20/30/40/50/60/80 MHz
    - PtMP Mode: 10/20/30/40 MHz
  • Enclosure Characteristics: Outdoor UV Stabilized Plastic
  • Supported Voltage Range: 20-26VDC
  • ESD/EMP Protection: ± 24KV Air / Contact
  • Operating Temperature: -40 to 80° C (-40 to 176° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4
  • Wireless Approvals: FCC, IC, CE
  • RoHS Compliance: Yes
  • Modes: Access Point, Station
  • Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
  • Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
  • Distance Adjustment: Dynamic Ack and Ackless Mode
  • Power Adjustment: Software Adjustable UI or CL
  • Security: WPA2 AES Only
  • QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
  • Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
  • Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM
  • Ubiquiti Specific Features: 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
