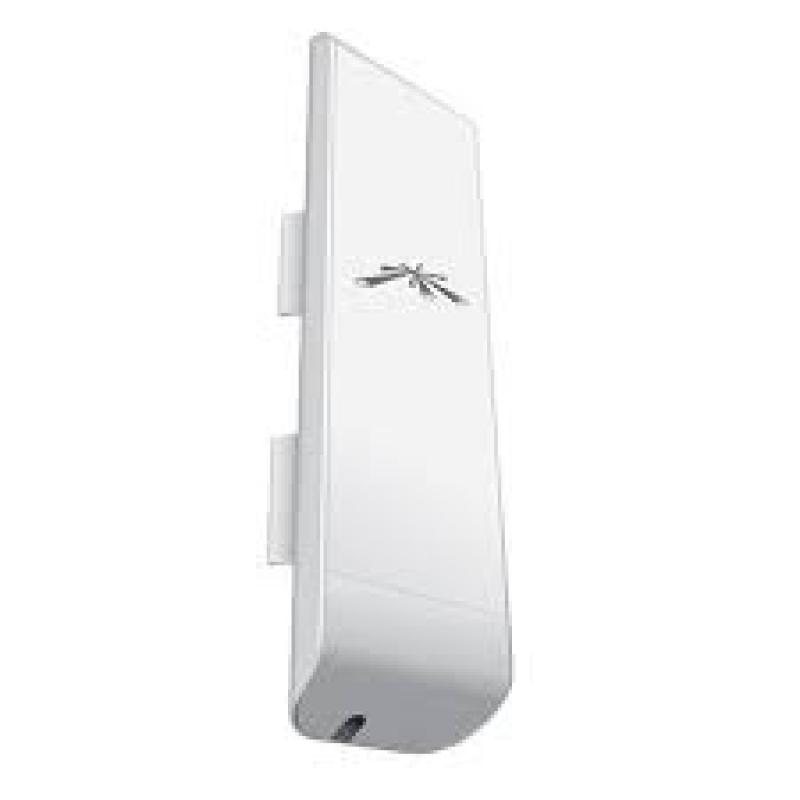

Ubiquiti UBNT-NSM2 Networks NanoStation M2 2.4GHz Outdoor Wireless Bridge (11dBi, 150+Mbps, 13+ km)

₦155000

The Ubiquiti NanoStation M2 Base Station features 2x2 MIMO technology and 150+ Mbps real outdoor throughput up to 13km+ range. This therefore allows for PtP (Point-to-Point) and PtMP (Point-to-MultiPoint) links that are significantly faster and longer than ever before.

Categories: Ubiquiti / Access point Brand: Ubiquiti SKU: NSM2

Description

Ubiquiti NanoStation M2 5 GHz MIMO Bridge/Base Station | NSM2

Ubiquiti NanoStation M2 Key Features

Dual Ethernet Connectivity
PoE Enabled
Frequency 2.5 GHz
Throughput 150+ Mbps
Range: 13+ km
Great Performance
Easy Installation

The low cost, hi-performance, and small form factor of the Ubiquiti NSM2, makes them extremely versatile and ideal in several different applications.

Next-Gen Antenna Design
New antenna array designs featuring 11dBi dual-polarity 11dBi at 2.4GHz. Optimised cross-polarity isolation and in a compact form-factor.

Integrated AirMax Technology
Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller.

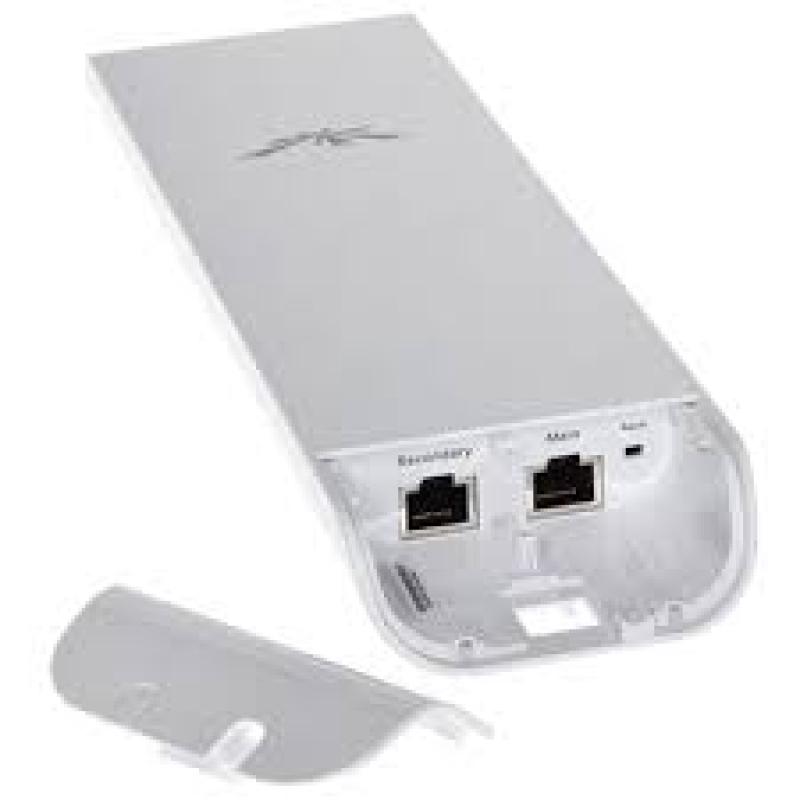

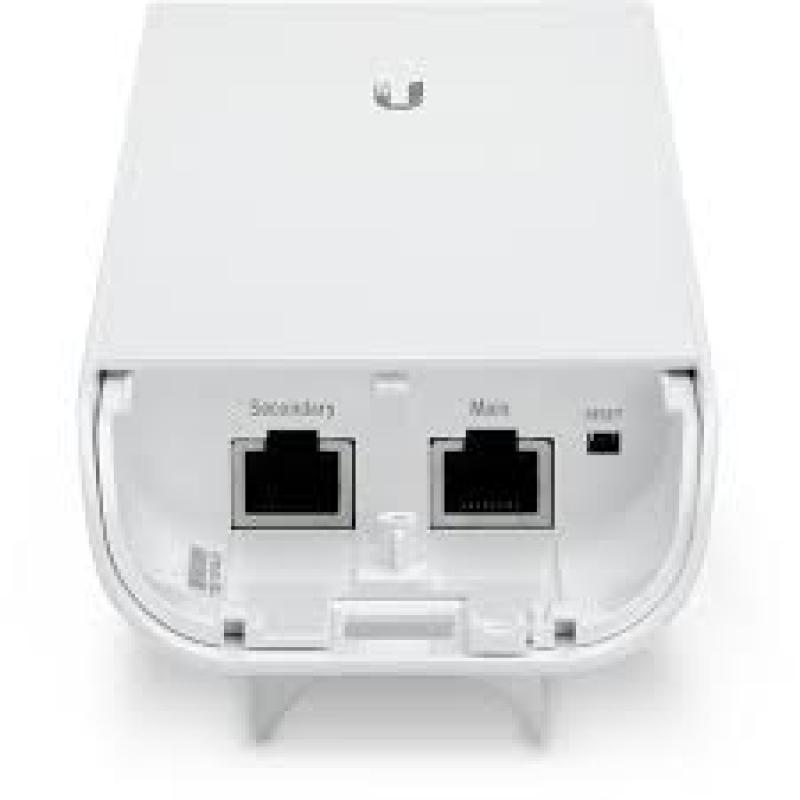

Dual Ethernet Connectivity
The Ubiquiti NanoStation M2 provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.

Intelligent PoE
Remote hardware reset circuitry of Ubiquiti NanoStation M2 allows for device to be reset remotely from power supply location. In addition, any Ubiquiti NanoStation M2 can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.

AirOS V
Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Please visit the Ubiquiti Firmware page for the latest Firmware upgrades

Ubiquiti NanoStation M2 Technical Specifications

System Information

Processor Specs: Atheros MIPS 24KC, 400MHz
Memory Information: 32MB SDRAM, 8MB Flash
Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet

RF

Operating Frequency: 2412-2462 MHz
Tx Output Power 11b/g:
- 28 dBm @ 1-24 Mbps
- 26 dBm @ 36 Mbps
- 25 dBm @ 48 Mbps
- 24 dBm @ 54 Mbps
Tx Output Power 11n AirMax:
- 28 dbm @ MCS0
- 28 dbm @ MCS1
- 28 dbm @ MCS2
- 28 dbm @ MCS3
- 27 dbm @ MCS4
- 25 dbm @ MCS5
- 23 dbm @ MCS6
- 22 dbm @ MCS7
- 28 dbm @ MCS8
- 28 dbm @ MCS9
- 28 dbm @ MCS10
- 28 dbm @ MCS11
- 27 dbm @ MCS12
- 25 dbm @ MCS13
- 23 dbm @ MCS14
- 22 dbm @ MCS15
Rx Sensitivity 11b/g:
- -97 dBm @ 1-24 Mbps
- -80 dBm @ 36 Mbps
- -77 dBm @ 48 Mbps
- -75 dBm @ 54 Mbps
Rx Sensitivity 11n AirMax:
- -96 dbm @ MCS0
- -95 dbm @ MCS1
- -92 dbm @ MCS2
- -90 dbm @ MCS3
- -86 dbm @ MCS4
- -83 dbm @ MCS5
- -77 dbm @ MCS6
- -74 dbm @ MCS7
- -95 dbm @ MCS8
- -93 dbm @ MCS9
- -90 dbm @ MCS10
- -87 dbm @ MCS11
- -84 dbm @ MCS12
- -79 dbm @ MCS13
- -78 dbm @ MCS14
- -75 dbm @ MCS15

Antenna

Antenna Gain: 10.4 - 11.2 dBi
Cross-pol Isolation: 23 dB minimum
Polarisation: Dual Linear
Max VSWR: 1.6:1
Beamwidth: 55 deg. (H-pol) / 53 deg (V-pol) / 27 deg (Elevation)

Power

Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Power Supply (included): 24V, 0.5A POE
Max Power Consumption: 8 Watts

Physical

Enclosure Characteristics: Outdoor UV Stabilised Plastic
Mounting Kit: Pole straps included
Operating Temperature: -30C to 75C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
Dimensions: 294 x 31 x 80 mm
Weight: 0.4 kg

Regulatory & Compliance

Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
