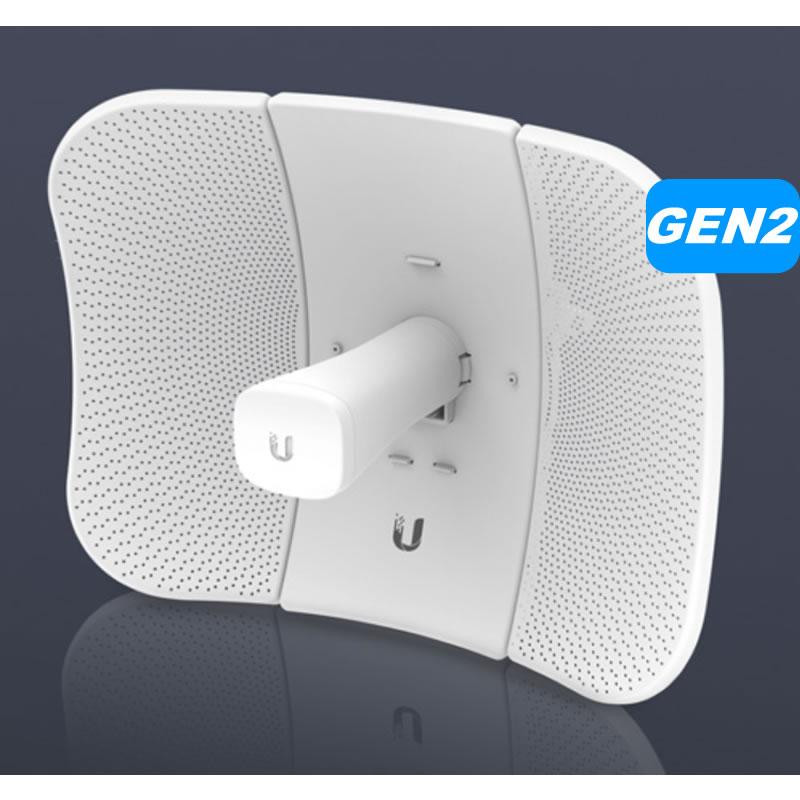

LiteBeam 5AC Gen2 CPE is part of the Ubiquiti Networks airMAX category
of products. Featuring instant accessibility to airOS interface via the
UMobile app.

LiteBeam 5AC features a two-mount system that provides adjustment
flexibility along both axes for versatile mounting options. The
mounting system, couples with the built-in bubble level, enables quick
and easy alignment.

The LiteBeam5 AC Gen2  integrates a separate Wi-Fi radio for fast
and easy setup using your mobile device.

Product Specifications
– Dimensions: 358 x 271.95 x 272.5mm (14.09 x 10.71 x 10.73″)
– Weight:
    Without Mount: 800g (1.76lbs)
    With Mount: 980g (2.16lbs)
– Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
– Max. Power Consumption: 7W
– Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
– Supported Voltage Range: 24V-10%
– Operating Frequency: 2412 – 2462MHz / 5150 – 5875MHz
– Gain: 23dBi
– Networking Interface: (1) 10/100/1000 Ethernet Port
– Processor Specs: MIPS 74Kc
– Memory: 64 MB DDR2
– LEDs: Power, Ethernet
– Channel Sizes:
    PtP Mode: 10/20/30/40/50/60/80MHz
    PtMP Mode: 10/20/30/40MHz
– Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
– Mounting: Pole-Mounting Kit (Included)
– Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
– Wind Survivability: 200km/h (125mph)
– ESD/EMP Protection: -24kV Contact / Air
– Operating Temperature: -40 to 70-C (-40 to 158-F)
– Operating Humidity: 5 to 95% non-condensing
– Certifications: CE, FCC, IC

Product Includes:
– (1) Antenna Feed
– (1) Central Reflector Panel
– (2) Side Reflector Panels
– (1) Feed Receiver
– (1) Azimuth Mount
– (1) Elevation Mount
– (1) Metal Strap
– (1) Knob Kit
– (1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
– (1) Power Cord
– (1) Quick Start Guide
