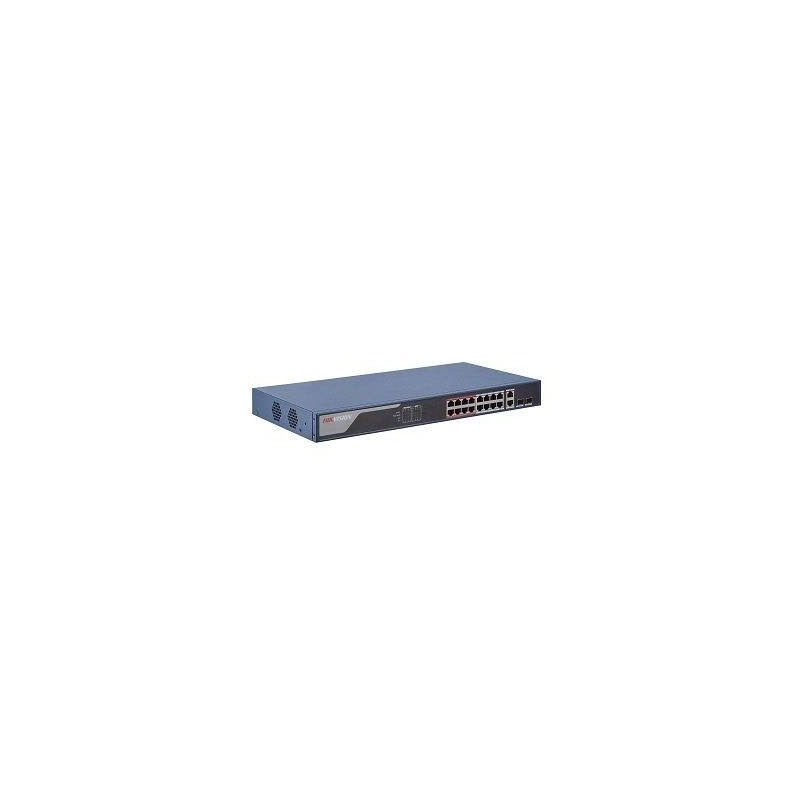

Hikvision DS-3E1318P-E i16-Port Fast Ethernet Web-Managed PoE Switch desi
₦235,000.00
Tax excluded
Same day delivery
The Hikvision DS-3E1318P-E is a 16-Port Fast Ethernet Web-Managed PoE Switch designed to support IP surveillance and other networking applications. It offers a combination of PoE ports and high-speed uplink options, making it suitable for medium to large-scale network deployments.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Hikvision DS-3E1318P-E is a 16-Port Fast Ethernet Web-Managed PoE Switch designed to support IP surveillance and other networking applications. It offers a combination of PoE ports and high-speed uplink options, making it suitable for medium to large-scale network deployments.
Key Features:
Port Configuration:
16 — 10/100 Mbps PoE RJ45 ports
2 — 10/100/1000 Mbps combo uplink ports (RJ45/SFP)
PoE Standards and Power:
Supports IEEE 802.3af/at standards
Total PoE power budget of 230W
Maximum of 30W per port
Management Features:
Web-based management interface
Supports VLAN configuration, STP (Spanning Tree Protocol), multicast, port mirroring, QoS (Quality of Service), and SNMP
Extend mode: cable transmission distance up to 250 meters
VIP port transmission priority
Performance:
Backplane bandwidth: 7.2 Gbps
MAC address table: 4K entries
Store-and-forward switching
Design and Build:
Metal housing with rack-mountable design Dimensions: 440 mm x 44 mm x 220.8 mm Operating temperature: 0ºC to +4 ºC
Operating humidity: 10% to 90% (non-condensing)
Additional Features:
4 kV surge protection on ports
6 kV surge protection on power supply
Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order
50 Items
